TD, D, TH, NE, NES, HL elevator for vertical bucket elevator, is my factory design new products, the main parameters of the equivalent or reference to the gb standards and advanced foreign standards. Suitable for conveying material powder, granular. Small block without grinding cut, half grinding cut raw material, the material temperature not to exceed 250 ° C, can send the material according to user requirements design temperature of 1000 ° C.

NE bucket elevator system into the type of feeding, material into the hopper in the ascent to the top plate chain, the material under the action of gravity discharge itself. Hoist specification (a total of 11 NE15 ~ NE800) more wide lifting capacity; And can produce high, low energy consumption, the machine USES the whole sealing type casing chain speed is low, almost no back to the material, so the reactive power loss, low noise, long service life.

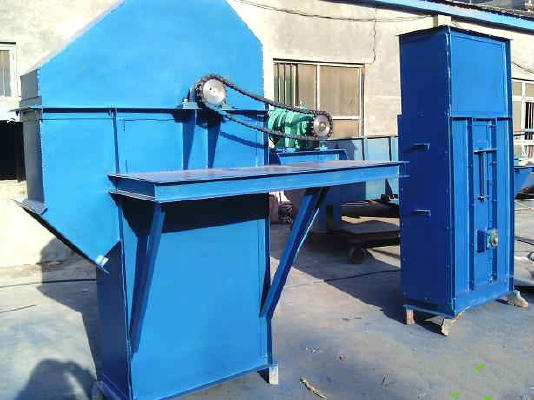

NE bucket elevator

Working principle:

NE bucket elevator system into the type of feeding, material into the hopper in the ascent to the top plate chain, the material under the action of gravity discharge itself. This series hoist specification (a total of 11 NE15 ~ NE800) more wide lifting capacity; And can produce high, low energy consumption, the machine USES the whole sealing type casing chain speed is low, almost no back to the material, so the reactive power loss, low noise, long service life.

Second, NE bucket elevator main structure:

1) NE bucket elevator components by running, driving device, the upper device, central casing, the lower unit.

2) run parts - composed of hopper and special plate chain, NE30 and adopt single chain, NE50 - NE800 with double row of chain.

3) drive drive - driven by a variety of combinations, (depending on the user's actual needs). Drive platform equipped with repair aircraft and rail. Points in both left and right. The upper device - installed orbit (double row chain), non-return device, discharge outlet is equipped with rubber back. Middle section - part of the middle section is equipped with orbit (double chain), in order to prevent the chain of oscillation. The lower device - equipped with automatic tensioning device.

Third, NE bucket elevator main working parts features:

1, the upper device: install a rail (double row), to prevent the chain of swing, non-return device, prevent hopper, rotary resistance material with lower chassis, discharge outlet is equipped with rubber to prevent material.

2, intermediate section: part of the middle section is equipped with orbit (double row) to prevent swinging chain work, part of the middle section is equipped with the access door to repair.

3, lower unit: install a tensioning device, NE15 ~ NE50 USES the spring tension, tensioning NE100 ~ NE800 adopts heavy hammer box.

4, chain wheel up and down the ZG310-570. The overall conditioning, the tooth surface quenching HRC40 HB229-269-48.

5, plate chain: chain plate adopt 45 # HRC36 ~ 42.

A, the chains have higher shear strength, fatigue strength and wear resistance, low failure rate, long service life;

B, using low speed chain (o. 5 m/s);

C, with the large capacity of hopper and the smaller distance, low driving power and large throughput. Especially adapt to improve after crushing limestone and cement clinker (NE50 or higher). NE30 bucket elevator
